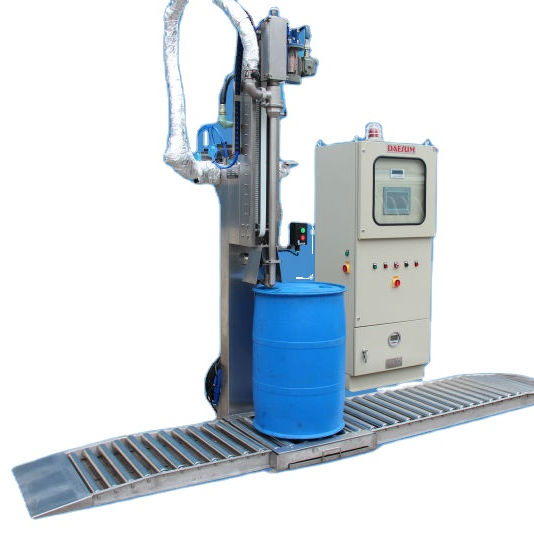

Semi-Automatic Drum Filling Machine 40BPH for 200L Drums

Semi-Automatic Drum Filling Machine 40BPH for 200L Drums
Semi-Automatic Drum Filling Machine 40BPH for 200L Drums Semi-Automatic Drum Filling Machine 40BPH for 200L Drums Semi-Automatic Drum Filling Machine 40BPH for 200L Drums
Informations de base
Lieu d'origine: Shanghai, Chine
Nom de marque: DAESUM
Certification: ISO9001
Quantité de commande min: 1
meilleur prix Contactez
Capacité: 40b / h Vitesse de remplissage: 35-40 mètres
Exactitude de remplissage: ± 0,2% FS Buse de remplissage: Une tête
Tambour: 200-220L Matériau du tambour: Récipient en plastique et en métal
Poids: 1000 kg Alimentation en tension: 415/220, 1 / 3phases, 50 / 60Hz
Mode de remplissage: Au-dessus ou sous le niveau liquide avec un remplissage rapide et dribble Forme de conteneur: Round IBC Tank, seau, tambour ou autres
Matériau de remplissage: Bière, autres, lait, eau, huile, jus, liquide Composants de base: Moteur, PLC, roulement, boîte de vitesses, buse de remplissage
Système de contrôle: Allemagne Siemens / Japon Omron PLC Control System Matériau de la buse: SS304
Chargeur: Cellule à chargement unique, surcharge protégé
Mettre en évidence:

semi-automatic drum filling machine 40BPH

,

drum filling machine for 200L drums

,

200L drum filler with warranty

Semi-automatic Drum Filling Machine GZ200-1A
Product Description

The Semi-automatic Drum Filler GZ-200-IA is designed for precise filling of free-flowing to viscous products, including chunky materials. It handles fill volumes from 50L to 1000L with high flow rates and accuracies up to ±0.2%, depending on drum size and product type.

Technical Specifications
Product Compatibility Free flow to high viscosity
Output Speed 30-50 drums/Hr (dependent on drum size and product type)
Container Shape Round IBC Tank, pail, drum or others
Drum Material Plastic & Metal containers
Drum Size Standard 200-220L
Voltage Supply 415/220, 1/3Phase, 50/60Hz
Filling Accuracy Class X (0.5) (0.2%)
Filling Mode Above or under liquid level with fast & dribble fill

Custom configurations are available according to customer requirements.

Filling System Features
  • SS304 Nozzle included
  • Spill-free operation with hood cover under nozzle
  • Manual/Net/Gross filling options with auto two-stage fast & dribble fill
  • Quick-release, fast interchangeable lance for easy maintenance (SS316 straight pipe)
  • Top/Low Fill with auto-lowering lance assembly and hood cover
  • METTLER TOLEDO brand weight scaler with digital display
  • Heavy-duty weighting platform with single load cell and overload protection
  • All liquid-contact parts made of SS304 & PTFE seals
  • IP55 class control cabinet for weighing indicator and pneumatic components
Control System Features
  • Germany Siemens/Japan Omron PLC Control System
  • Manual/Net/Gross filling with auto two-stage fast/dribble fill
Optional Features
  • Hazardous environment compatibility with Ex-proof system
  • Nozzle diving system
  • Drum crimping tool
Semi-Automatic Drum Filling Machine 40BPH for 200L Drums 0 Semi-Automatic Drum Filling Machine 40BPH for 200L Drums 1 Semi-Automatic Drum Filling Machine 40BPH for 200L Drums 2
Contact us now for immediate assistance with your application questions.
