Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Informations de base
Lieu d'origine: Shanghai, Chine
Nom de marque: Daesum
Quantité de commande min: 1
meilleur prix Contactez
inspection vidéo à la sortie: Fourni rapport d'essai de machines: Fourni
Composants de base: PLC, Silo, Mélangeur, Convoyeur à vis Application: Construction
Tension: 380 V Puissance (w): 400
Poids: 200000 KG Garantie: 1 an
Points de vente clés: Automatique, facile à utiliser, longue durée de vie, précis Nom de machine: centrale de malaxage
Produit: Poudre sèche/mortier/gypse Pesage du sacle: 8 ensembles
Matériel: Acier/fer Mixer: 2 set
Capacité de production: 60000 tonnes par an Type de commercialisation: Produit ordinaire
Service après-vente assuré: Oui Automation: Dosage et pesée
Fonction: Mélange de mortier sec
Mettre en évidence:

Automatic dry mortar mix plant 380V

,

Dry mortar mixing line 60000 ton/year

,

Construction mortar plant 400W capacity

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 0Dry powder/mortar Mixing plant

Introdction

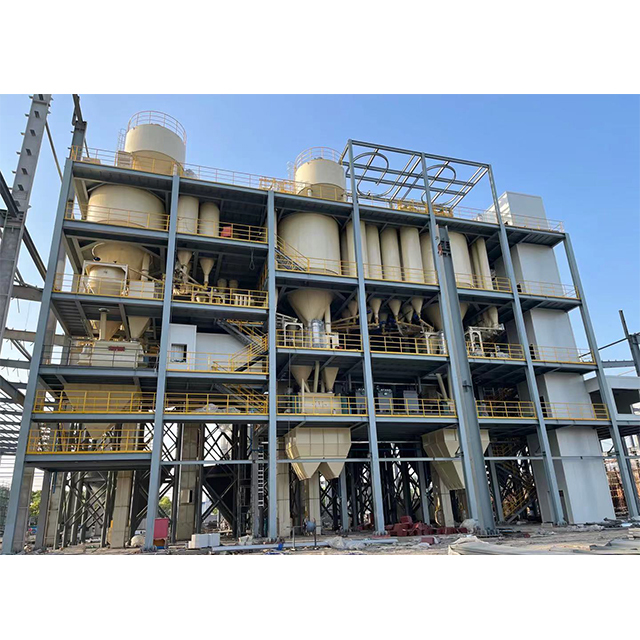

  The mortar mixing plant is mainly composed of mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.

  The mixing plant has the advantages of environmental protection, energy saving, high efficiency, stability and safety.



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 2



 Product parameters



Production line type DX-PT20-2 Dry sand storage silo(s)  40m³*4
Product type Speacial powder product

Powder storage silo(s)

  40m³*4
Yearly output(one shift)  60,000 MT  Small material silo(s)  30m³*8
     Additive silo(s)  0.5m³*12
Yearly output(one mixer)  30-40 Thousand MT Finished product hooper(s)  5m³*2
Powder product output  2*12t/h Valve bag packing line(s)  3-mouth impeller packer*2
Mixer*2  WAM 2m³ Plough type  dust exhauster(s)

28 sets
Weighing system  8 sets Blow tank(s) 6 sets
WAM manual butterfly valves  24 sets  WAM pneumatic butterfly valve(s)  18 sets
 WAM screw feeders 23 sets  Small and micro material dosing screw feeder(s)  12 sets

Peripheral Equipment



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 4Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 6Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 8Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 10



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 12Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 14Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 16Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 18Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 20
